Billo's VW Short Bus
A1 Sidewinder Header & A1 Sidewinder Muffler
from Vee Dub Parts
Installed by
Boesch Built Automotive Fabrication
VDUB YA
VW Short Bus

Boesch Built VW Videos Short Bus Home All SB Upgrades ITIBITI

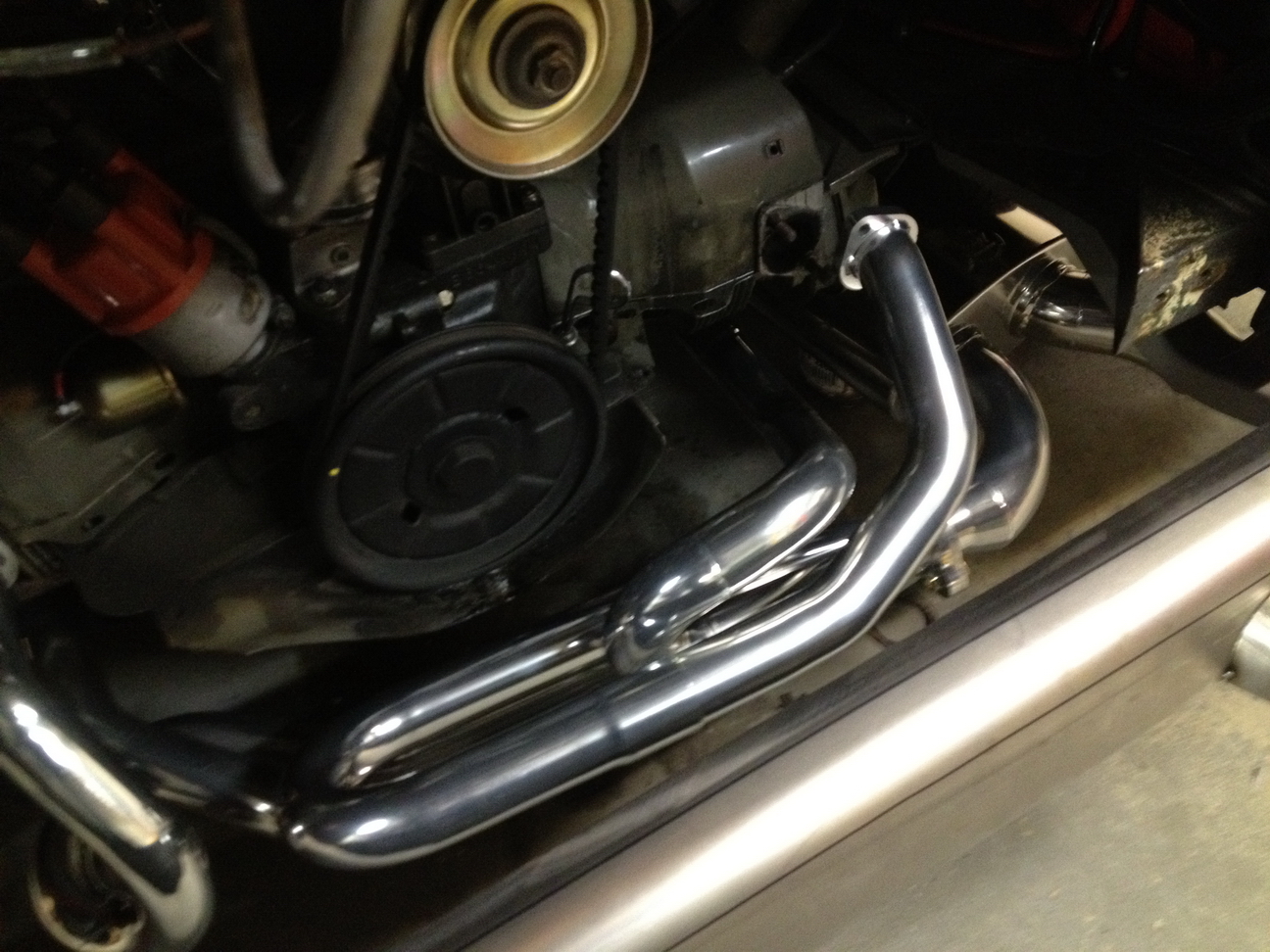

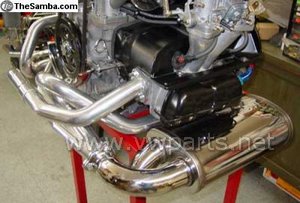

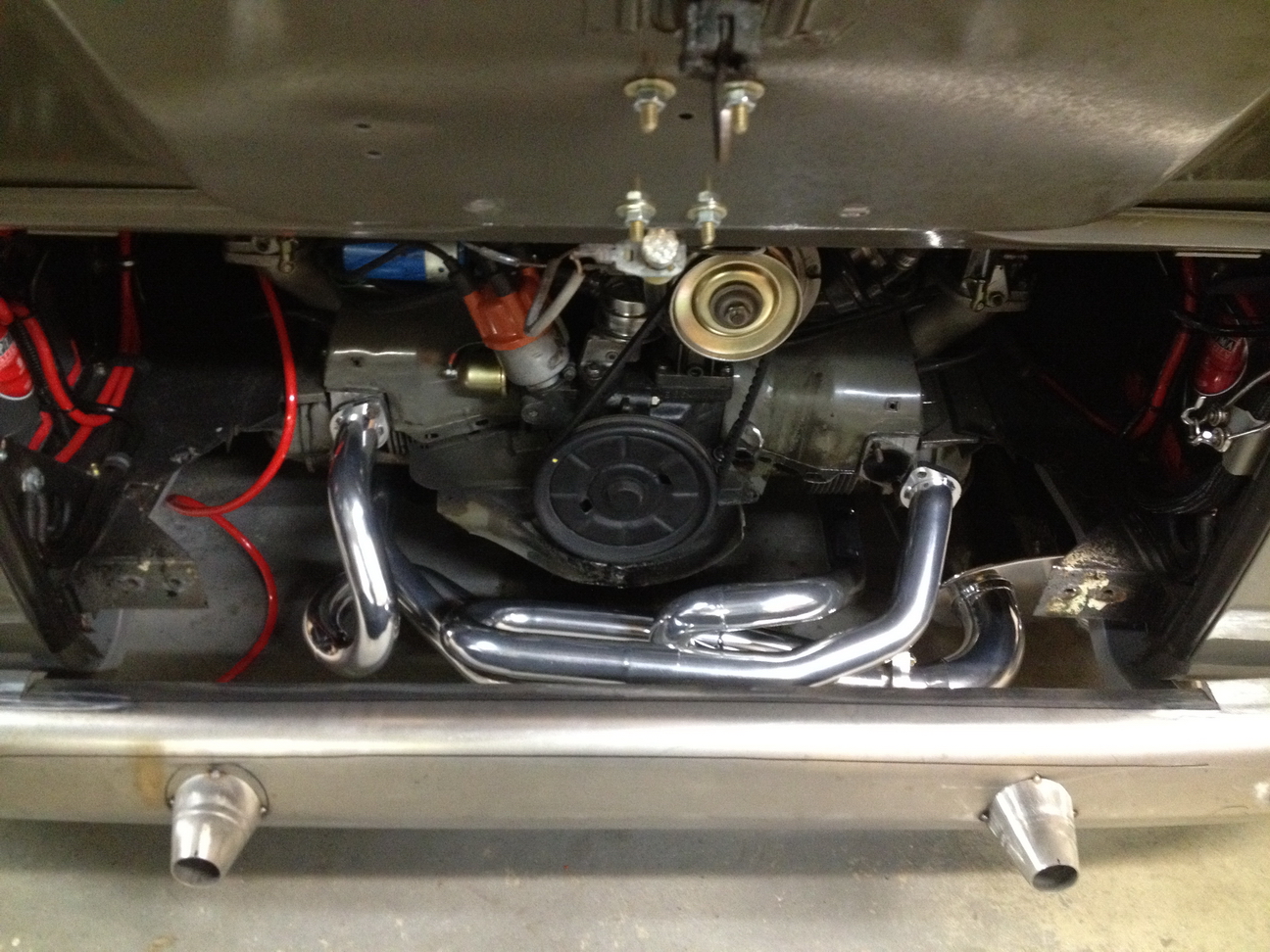

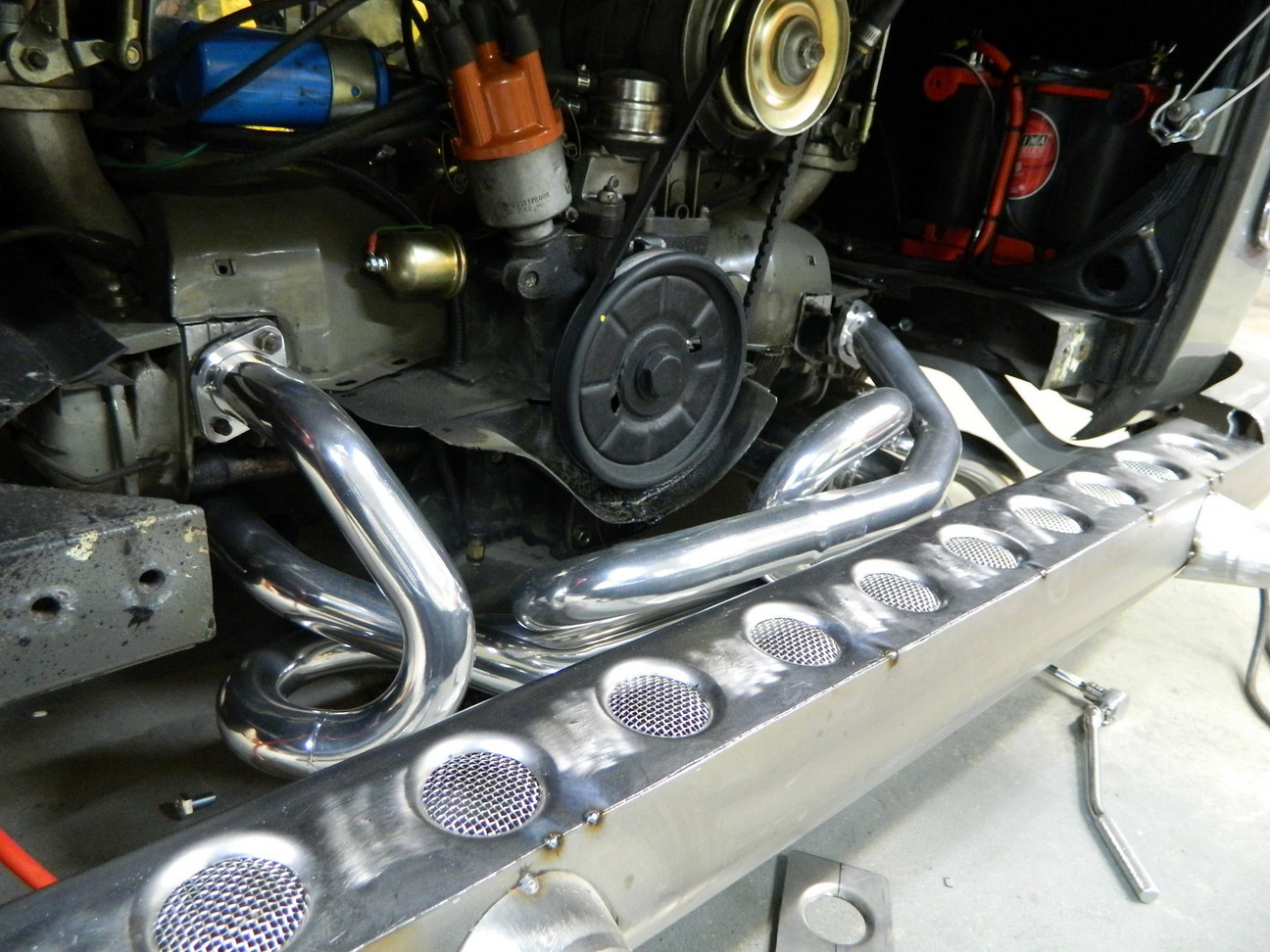

The header, from A1 in Santa Ana, California, feature 1 5/8" 16-gauge mild steel tubing, 3/8" thick head flanges, Superflo merged collector, gasketless tru-flat collector flange and matching J pipes. Everything is ceramic coated. A 3/4" primary length, and 1 7/8" collector outlet provides a powerband to 7500rpm. It fits Type 1, Early Bus and Karmann Ghia. They offer superior ground clearance, and are perfect for all lowered VW's...like the Short Bus!
A1 Sidewinder Header... A1 Sidewinder Header... A1 Sidewinder Header... A1 Sidewinder Header... A1 Sidewinder Header...
A1 Sidewinder competition header.

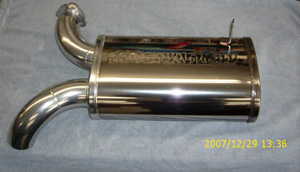

The competition muffler uses A1's exclusive "magnaflow" muffler design built to A1's specifications. It incorporates a full 2 1/2" hi-flo "straight through" core design, and is constructed with 409 stainless steel. The inlet and outlet are on the same end cap for fitment versatility. This design allows the muffler to flow equally to that of an open stinger upwards of 220HP, while allowing a clean, even exhaust note and a noise level under 90 decibels.
   A1 Sidewinder Exhaust Muffler...   A1 Sidewinder Exhaust Muffler...
  A1 Sidewinder competition muffler.

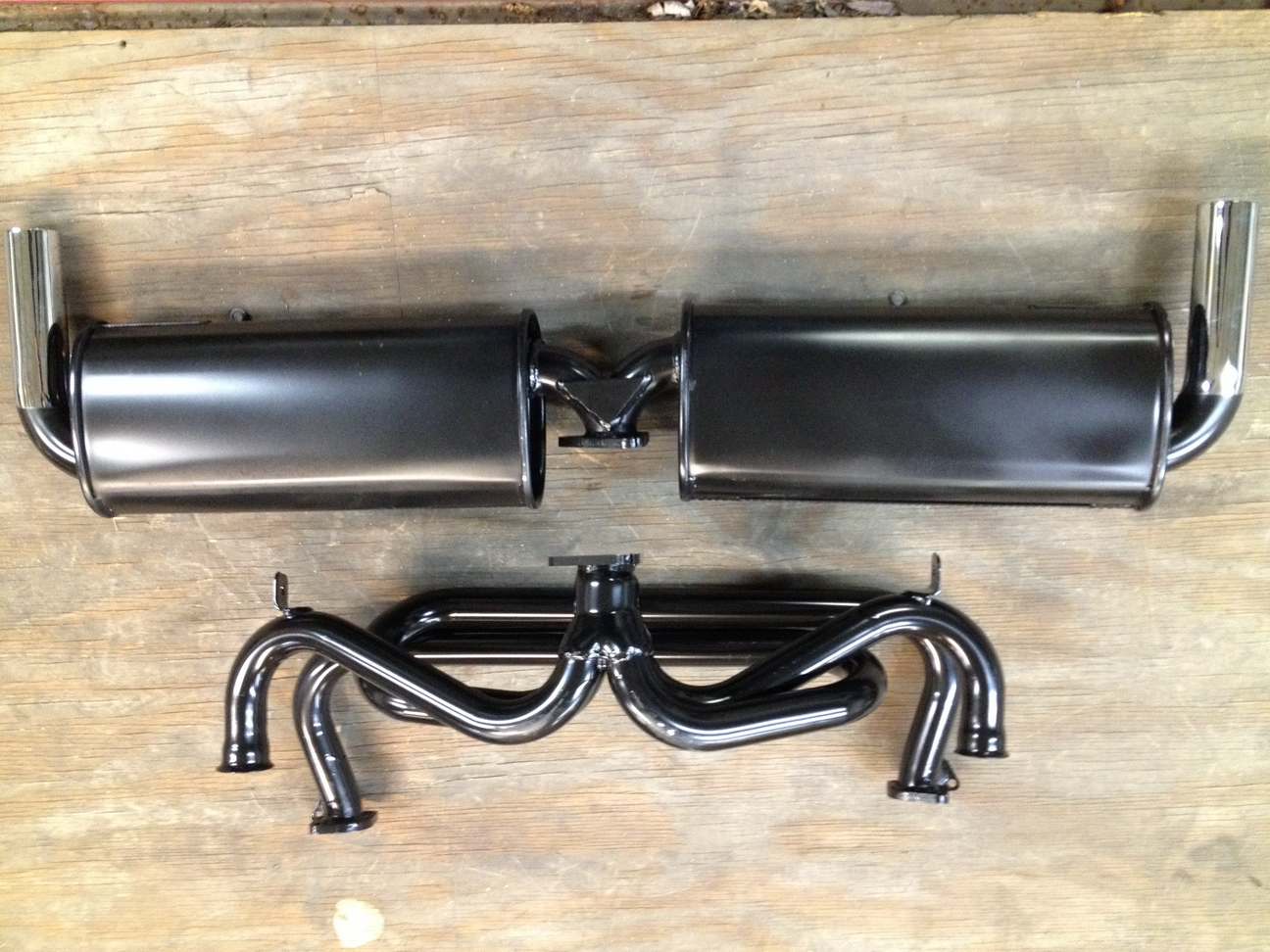

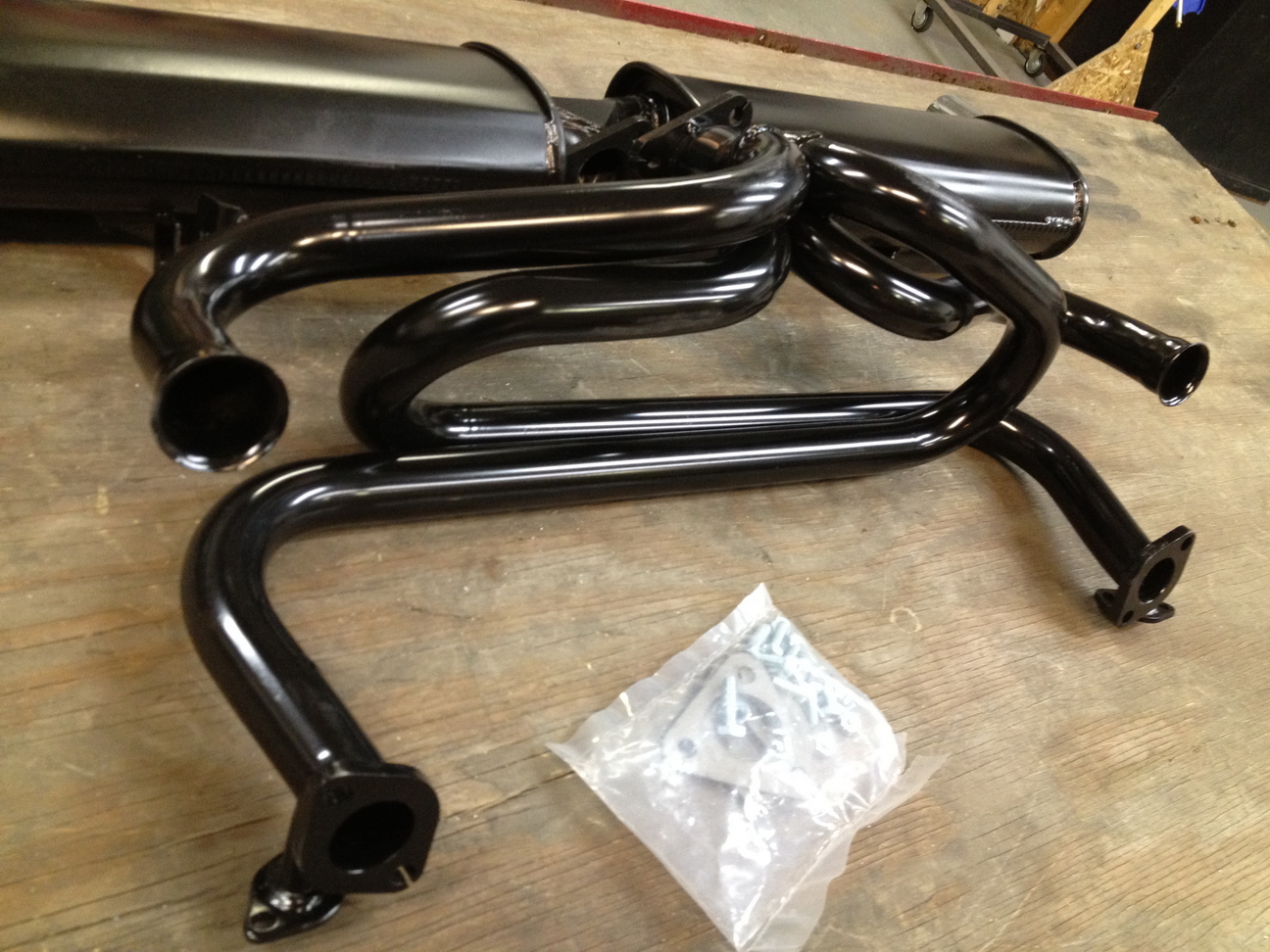

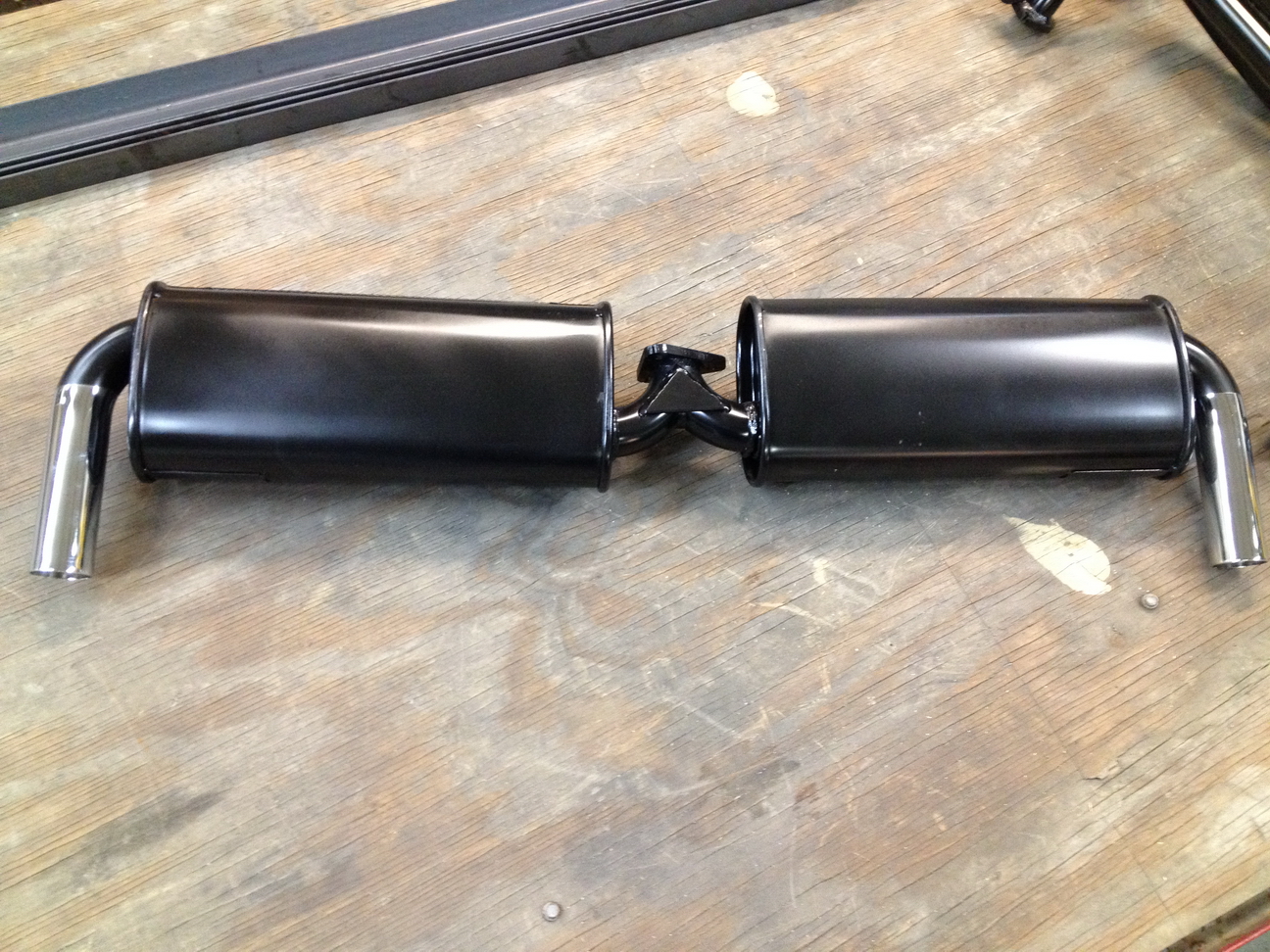

Below is the original exhaust we ordered. While good, it didn't look right for what we were trying to achieve.
We had no choice but to return it.

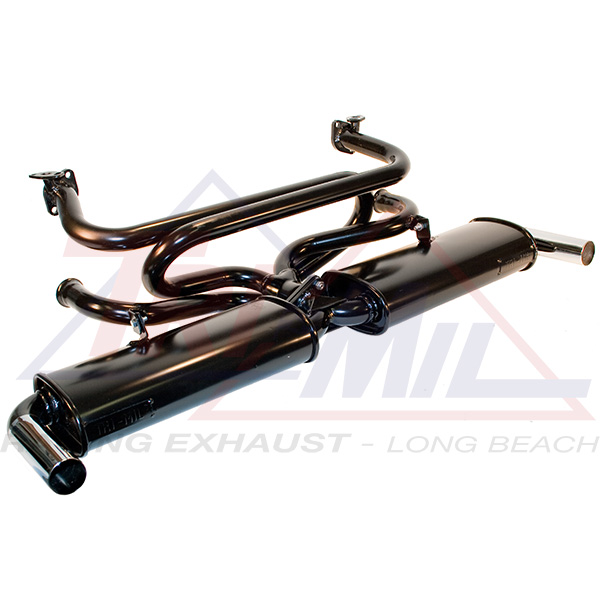

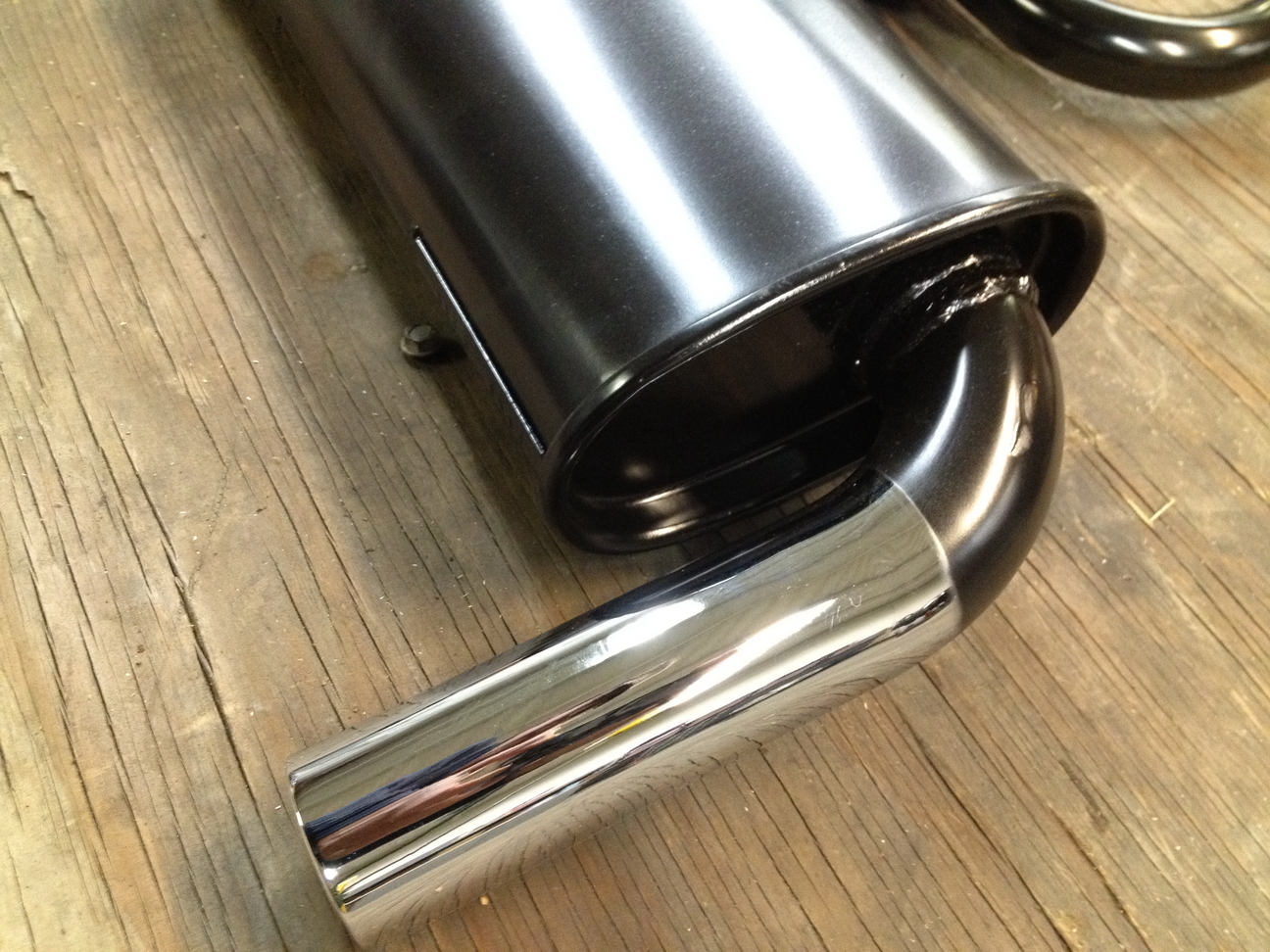

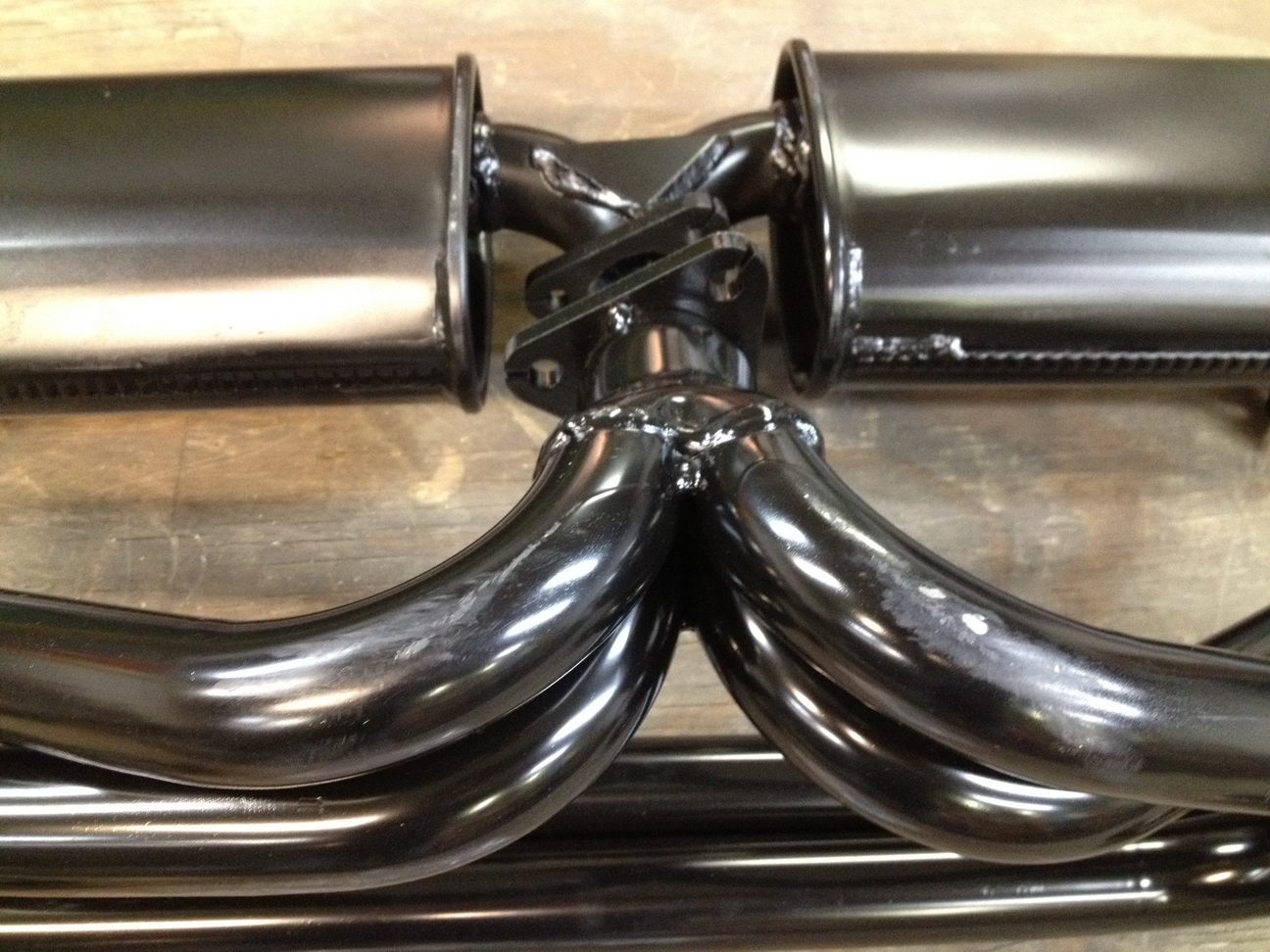

Dual Quiet-Pak Exhaust, with Heat Risers, in Black/Chrome and uses 1-1/2" diameter/16 gauge mild steel tubing. It is mandrel bent, mig welded and test fit to ensure optimum quality and performance. It's designed to be used with stock/aftermarket heater boxes or j-tubes.
    Tri-Mil Dual Quiet-Pak Exhaust...
Tri-Mil Dual Quiet-Pak
Tri-Mil Dual Quiet-Pak Exhaust... Tri-Mil Dual Quiet-Pak Exhaust... Tri-Mil Dual Quiet-Pak Exhaust... Tri-Mil Dual Quiet-Pak Exhaust... Tri-Mil Dual Quiet-Pak Exhaust...
001 002 002 004 005
  Tri-Mil Dual Quiet-Pak Exhaust... Tri-Mil Dual Quiet-Pak Exhaust... Tri-Mil Dual Quiet-Pak Exhaust...
  006 007 008
